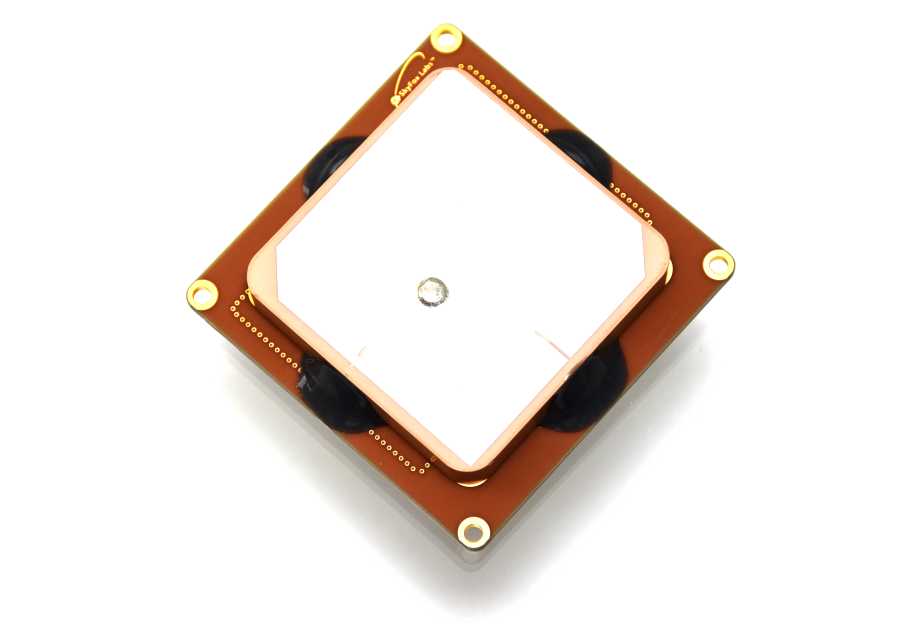

pqADSB-NG/FM (Flight Model)

Space-Friendly™ PocketQube ADS-B Receiver.

The pqADSB-NG is a Next Generation PocketQube ADS-B Air Traffic Control (ATC) Receiver based on freely available 1090ES Squitters transmitted from aircrafts. The next generation RF chain with Improved Demodulator Sensitivity, Telemetry Engine and Squitter Counter with an ASCII output via serial UART channel is a compact solution including antenna array with No Deployables!

Single Unit. | All-in-One.

Are you still using SDR-based high data rate sampling ADCs just draining energy from the battery which then all need cooling? SDR-based receivers and decoders are brilliant in their versatility, reconfigurability and amount of features that can be adapted to. But, they naturally consume much more power than necessary.

Focus on Mission. | Tracking Aircrafts.

pqADSB-NG is based on a standalone, dedicated RF chain solution, requesting only that energy really necessary to monitor the ADS-B L-Band 1090 MHz Air Traffic! A bonus is non-deployable antenna array - no risk of deployment failure.

Whether you’re training the next generation of Air Traffic Control (ATC) specialists, building your own private aircraft-tracking constellation, or launching a revolutionary university search and rescue (SAR) mission – everything is now possible with pqADSB-NG!

Part Number: pqADSB-NG/FM (Flight Model)

Product Summary

• PocketQube ADS-B System with Embedded Antenna Array
• Automatic Dependent Surveillance – Broadcast (ADS-B) Receiver, Mode-S 1090ES, 1090 MHz
• Improved sensitivity, Packet Counter, Telemetry Engine
• 56bit, 112bit Extended Squitters + CRC filters
• Civil Downlink Format 11, 17 (DF11, DF17) Output
• Highly Sensitive, Ultra Low Power, World's Lowest Profile
• Sensitivity: up to -106 dBm (10^-2 BER)
• Up to 1600 km slant range, up to 75000 fpm
• Intended to: LEO up to h = 500+ km
• Mega-Constellation Ready! product
• Power Requirement: 2.7-3.6 V @ 75 mA (250 mW)
• UART 230400 bps-8-N-1, 3V3-CMOS levels
• Dimensions: 50x50x12.5 mm
• Wide Temperature Range: -40˚C to +85˚C
• PicoBlade™ 1.25 6P connector (Power + Data)
• Low mass 70 grams

• Dual Use Goods: YES
• HS Code: 8526.10.00.90
• Lead Time: 2-4 weeks + Shipping
• Country of Origin: Czech Republic

Pricing (EUR)

Qty.  Unit Price  Ext. Price​
1:    3900 €      3900 €
2:    3490 €      6980 €
3+:   3250 €      9750 €

Want this for your project? → Contact us.

pqADSB-NG/EK (Evaluation Kit)

The pqADSB-NG Evaluation Kit is the Full Set of Hardware making the integration of the PocketQube ADS-B Receiver System Quick & Easy job!

Connect it with the FTDI USB-to-Serial cable and standard PC Evaluation Kit App to catch and display your first On Air ATC Traffic ADS-B Squitters. It will allow you to deploy, connect and operate all piADSB-NG features easily!

Part Number: pqADSB-NG/EK (Evaluation Kit)

Product Summary

• pqADSB-NG Evaluation Board with TXD, RXD indicating LEDs
• pqADSB-NG CubeSat (PocketQube) ADS-B Receiver Eval Kit Parsing Software App to vizualize ADS-B Data on associated USB Flashdrive
• Test pins ready for Oscilloscope Probe hooks
• 300 mm long, 3-wire harness with Molex and 2.54 mm (0.1") connectors, Engineering Model, for interconnection of the piADSB-NG Unit and the Evaluation Kit
• 4x M3 Polyimide standoffs for the Eval Kit PCB
• Header for the external USB-to-TTL serial cable connector
• FTDI Serial-to-USB Cable included
• Power-ON logic switch demonstrator
• Powered and operated directly from USB port i.e. from portable PC
• Dimensions: 88x97 mm

• Dual Use Goods: YES
• HS Code: 8473.3020
• Lead Time: 1-3 weeks + Shipping
• Country of Origin: Czech Republic

AIV/AIT Inquiry? → Contact us.
